Kodak Reflex II - Shutter Disassemby 4/9

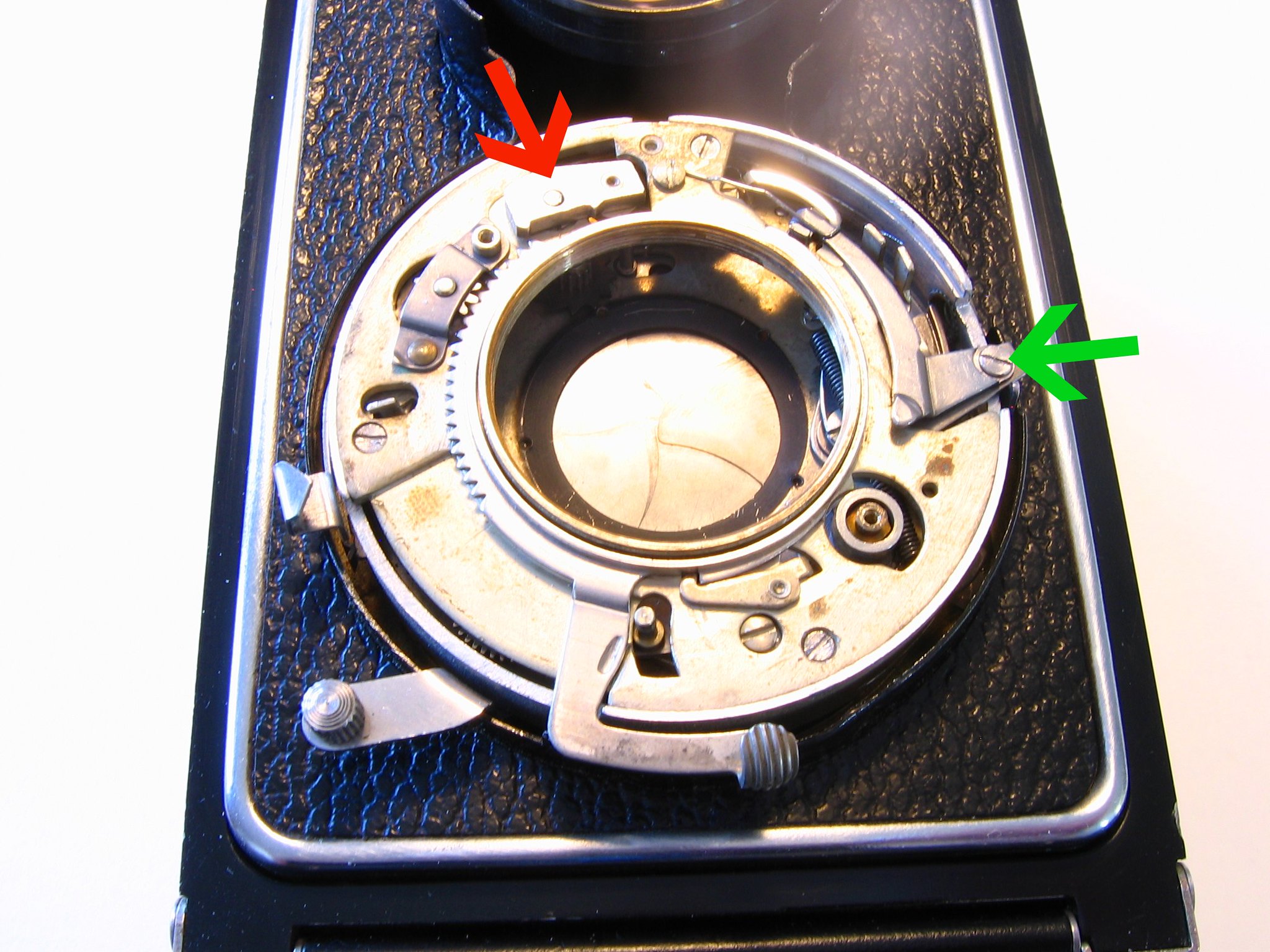

Unscrew the tiny screw at the 3 o'clock position (green arrow) that holds the lever together, lift off the top part of the lever, and unhook it from the spring. Also lift off the thingy at the 11 o'cock position (red arrow, I have no idea what this is called, it is part of the flash sync mechanism), and the ring that cocks the flash sync mechanism.

When putting this ring back on, tension the flash sync mechanism a little. (Rotate the ring a bit in clock wise direction as you put it back on). This tension is what makes the T setting work.
